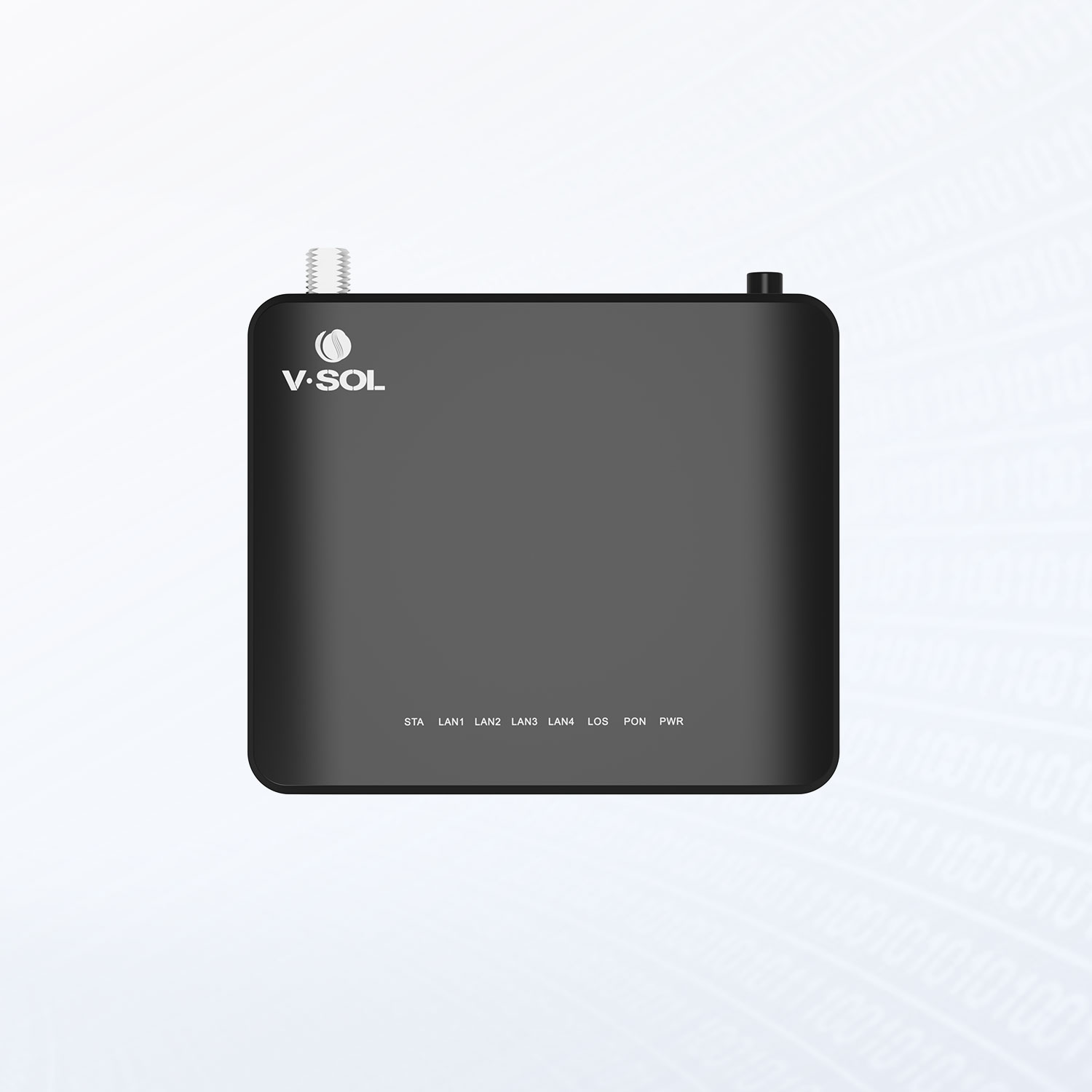

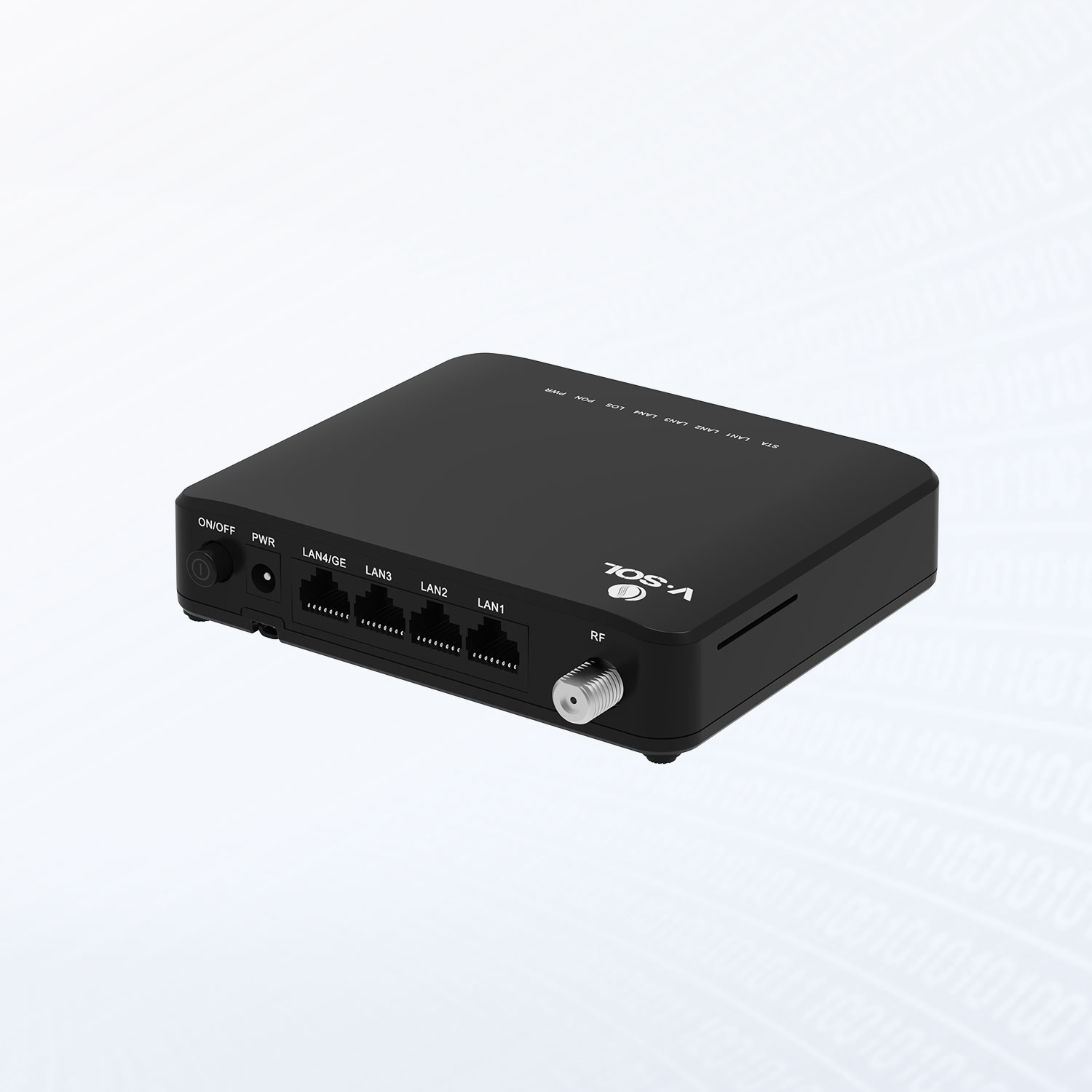

CATV XPON ONU

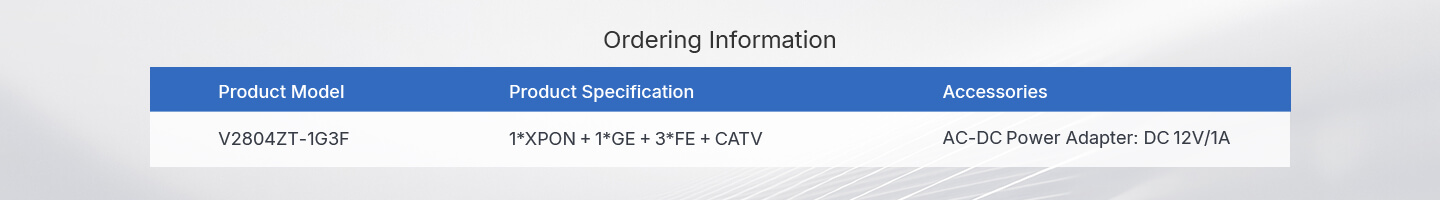

V2804ZT-1G3F | 1*XPON+1*GE+3*FE+CATV

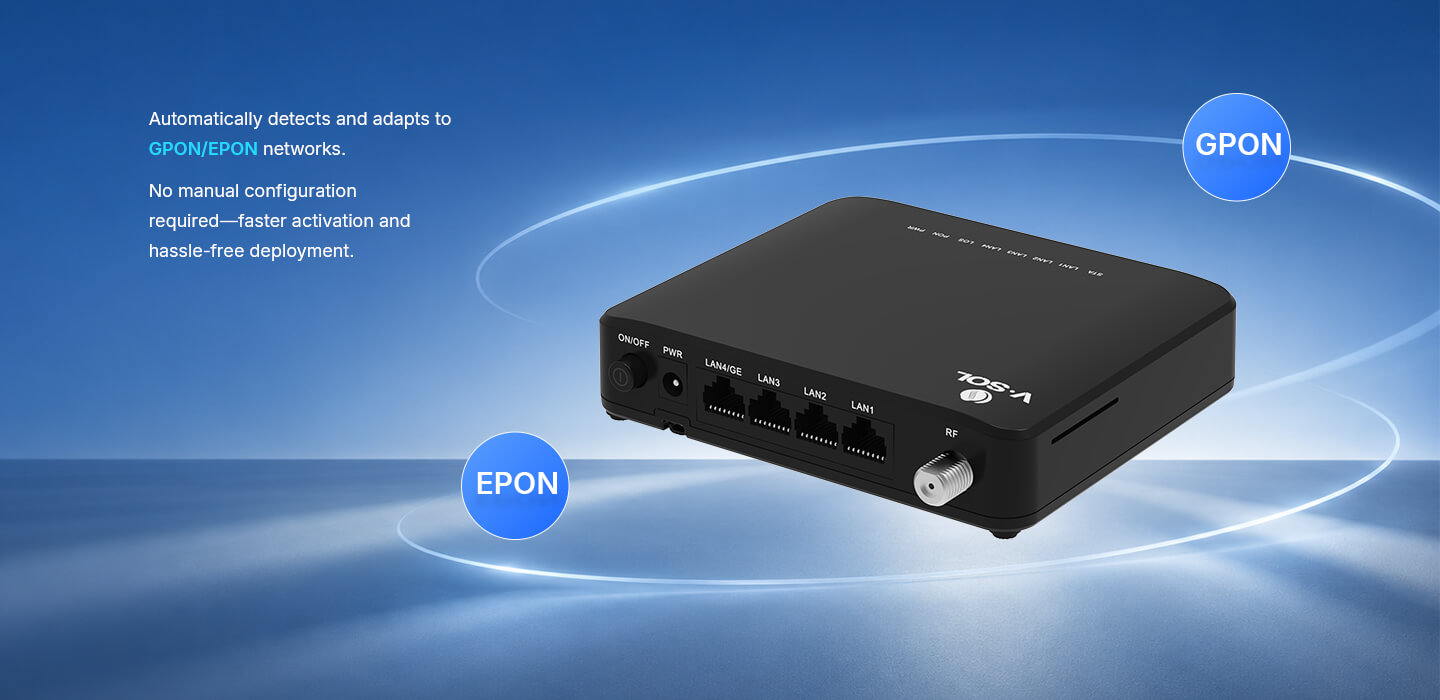

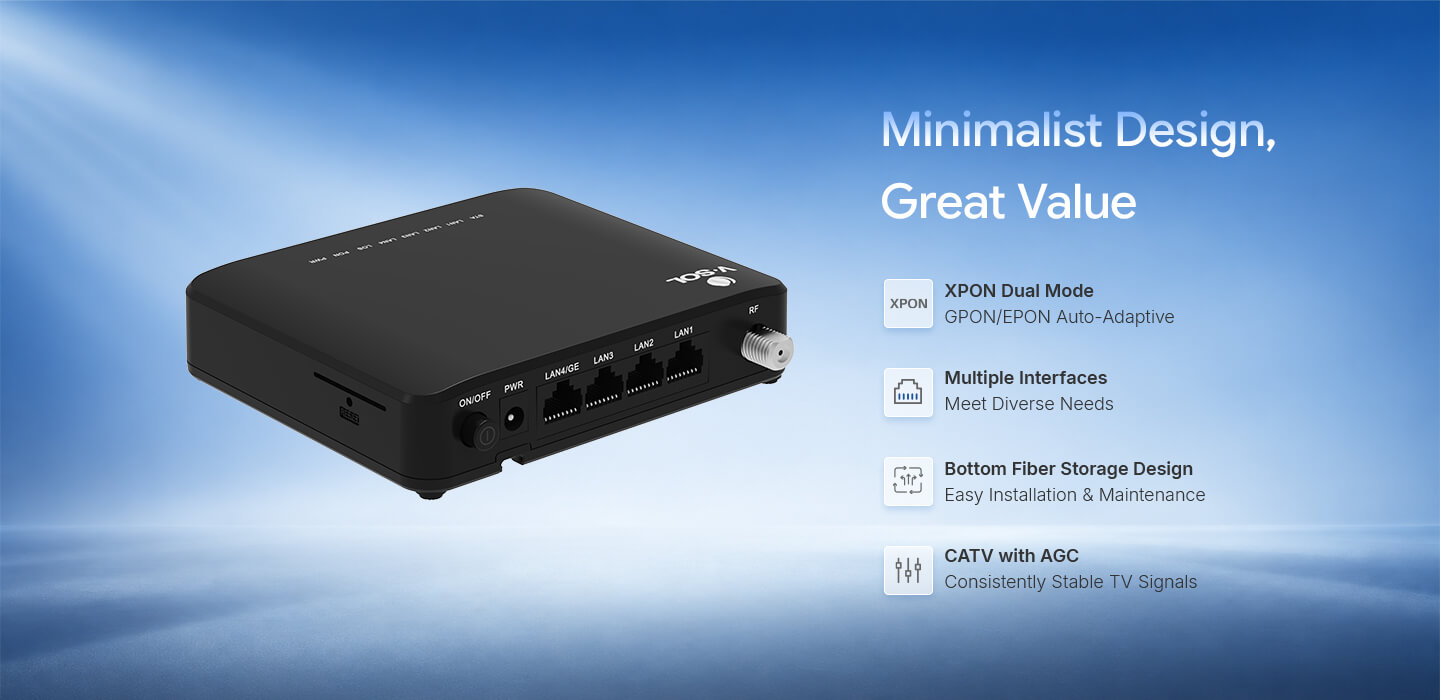

GPON/EPON Auto-Adaptive

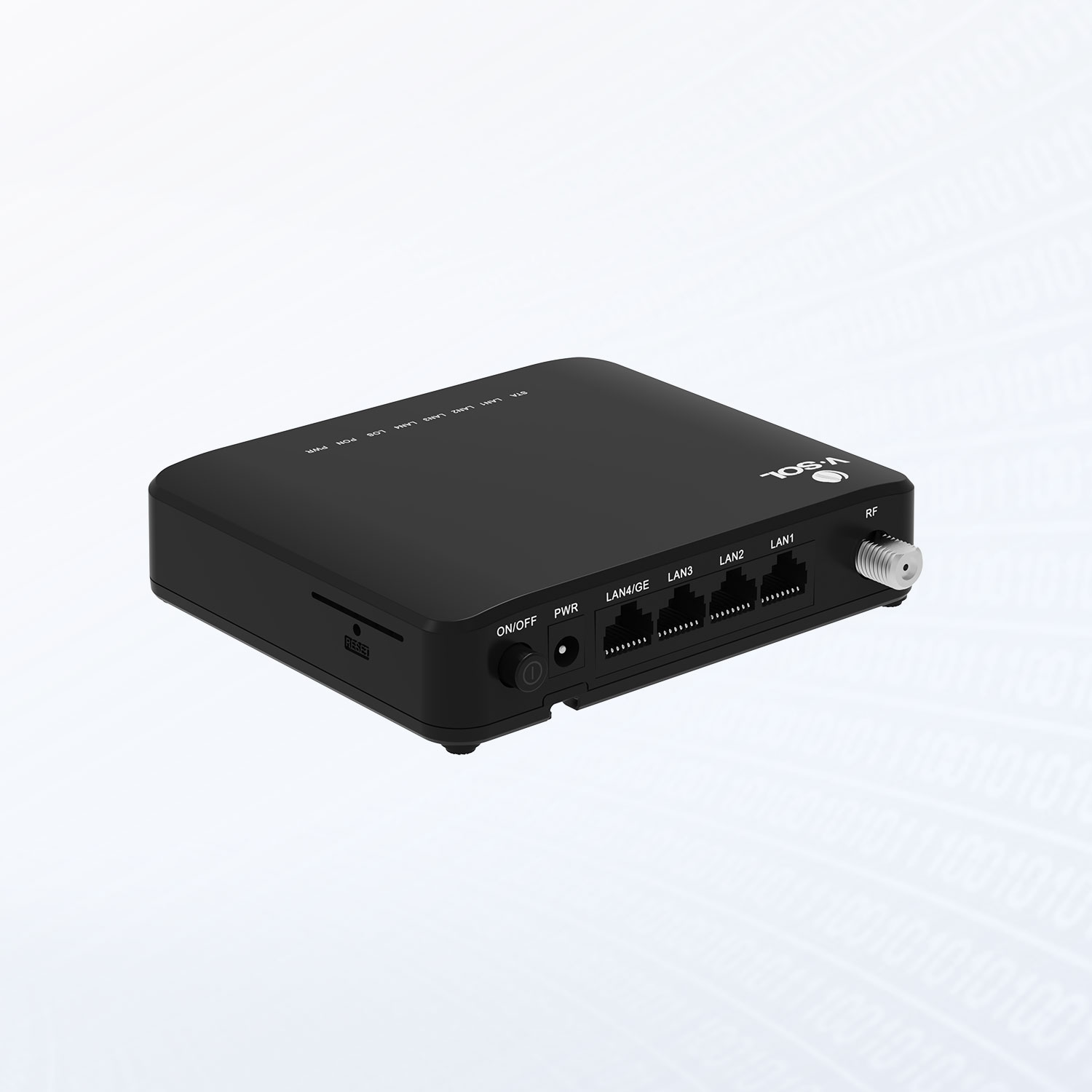

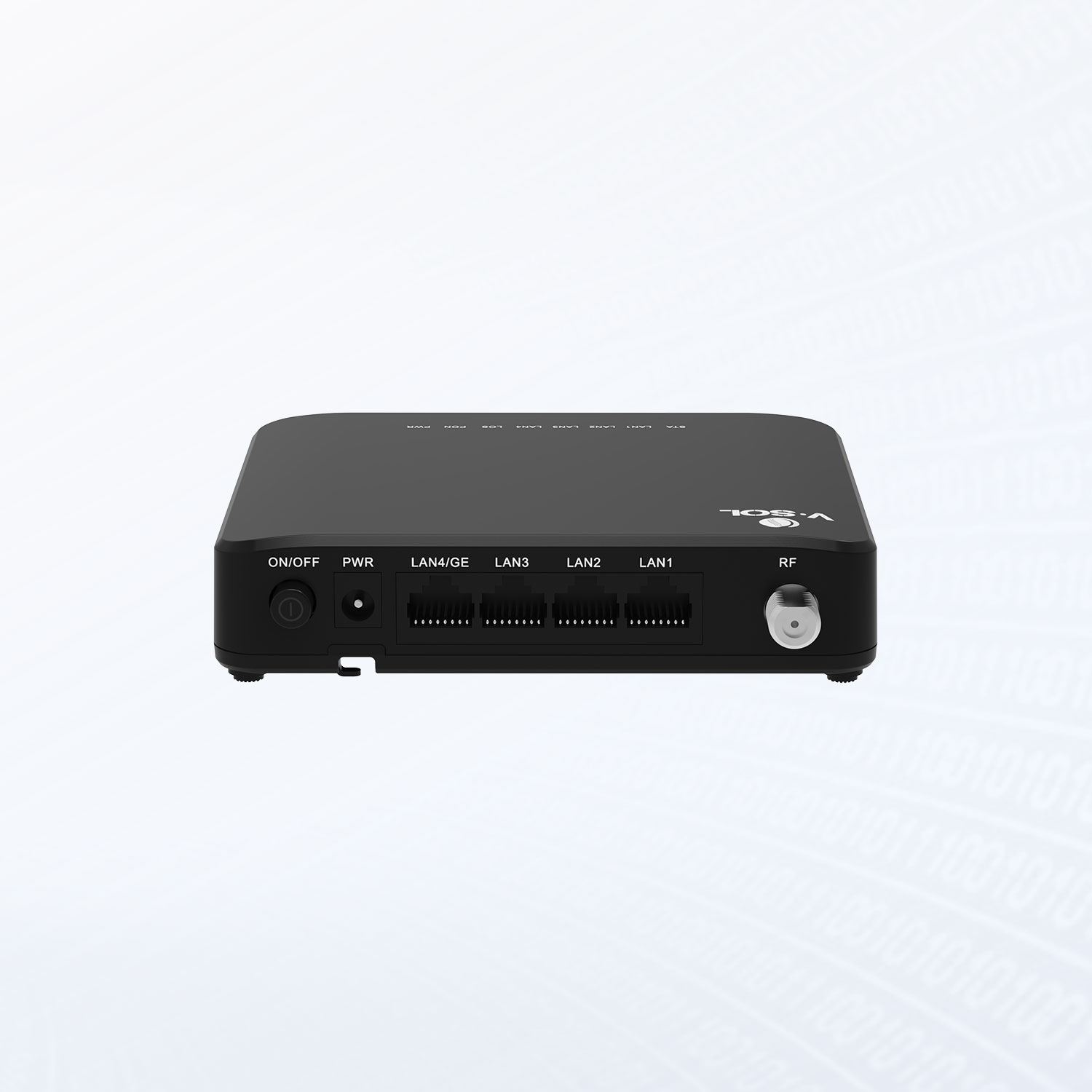

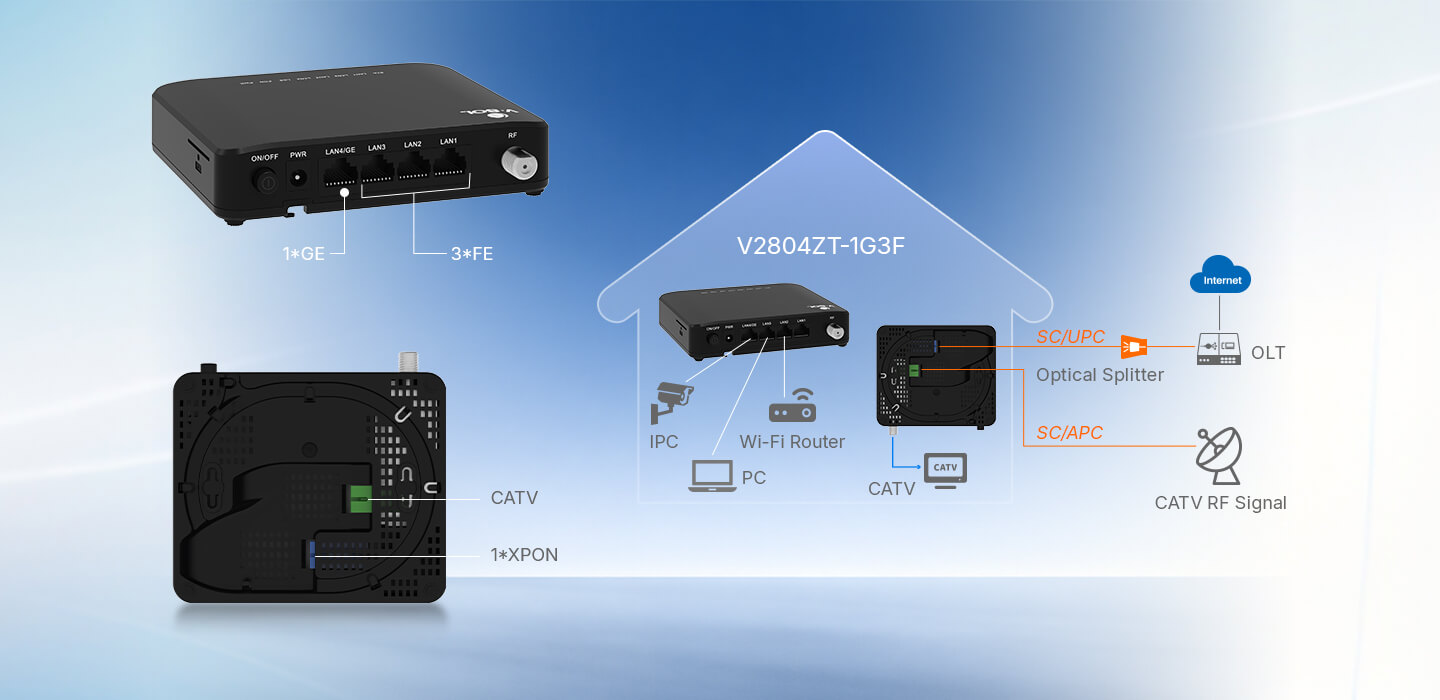

Multiple Interfaces for Diverse Needs

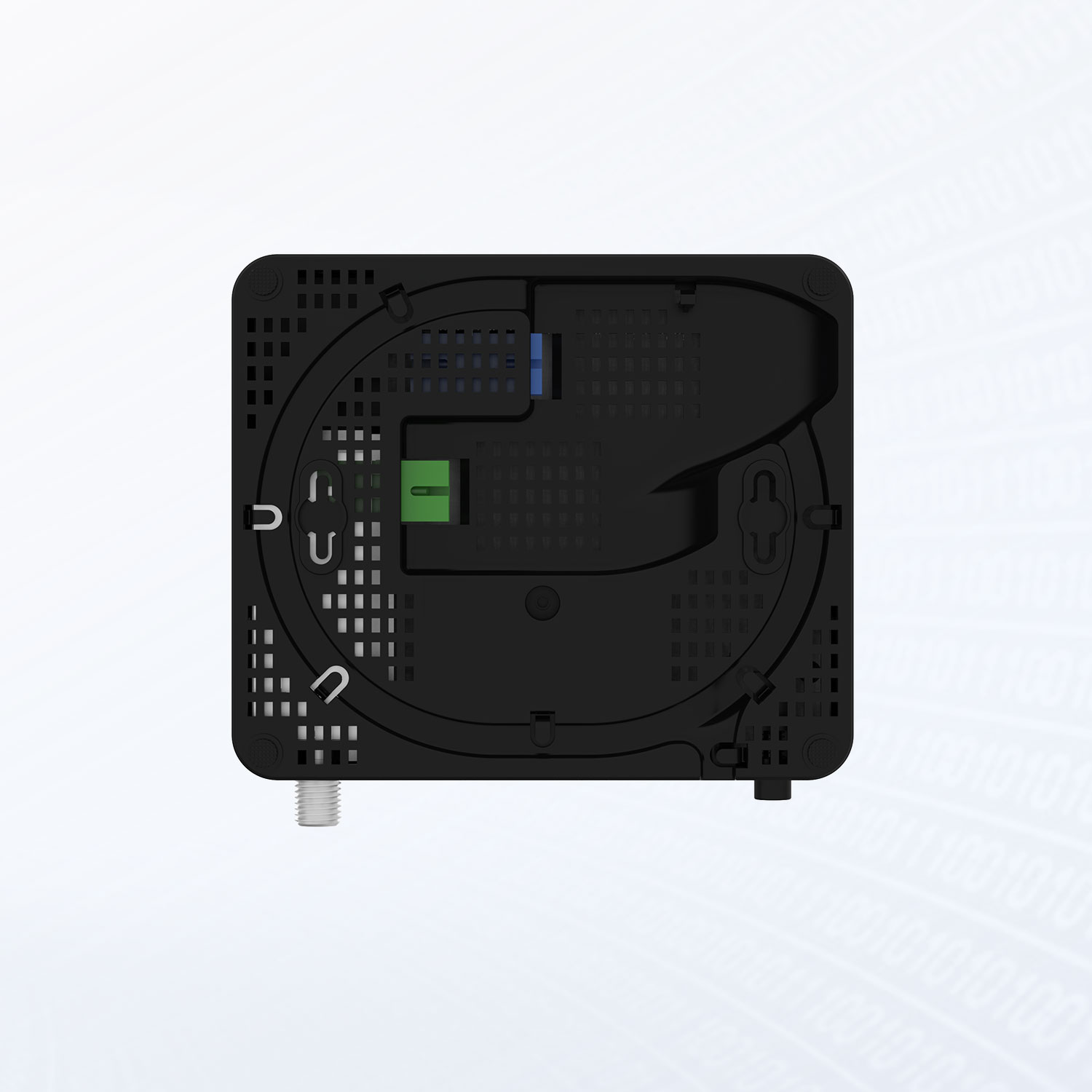

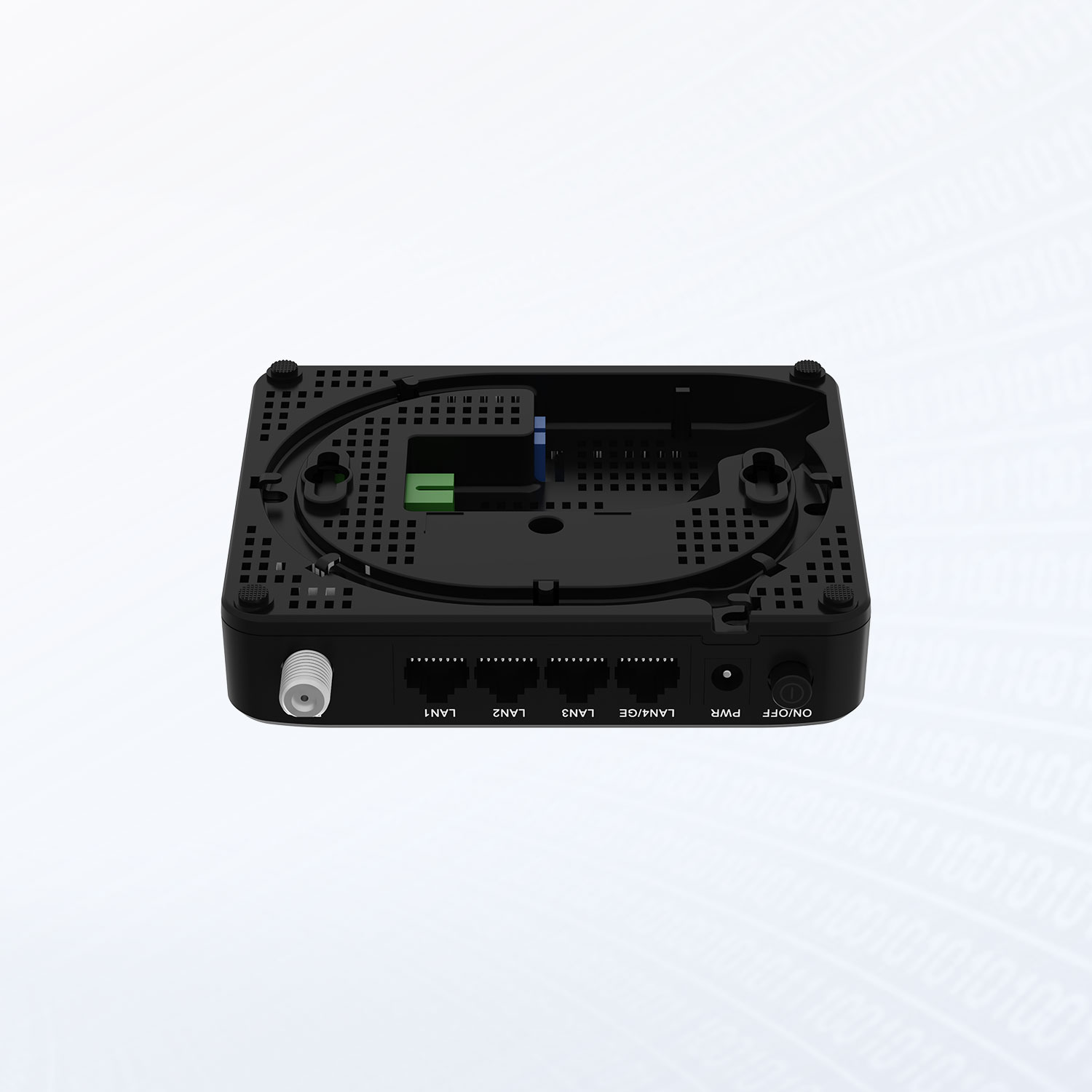

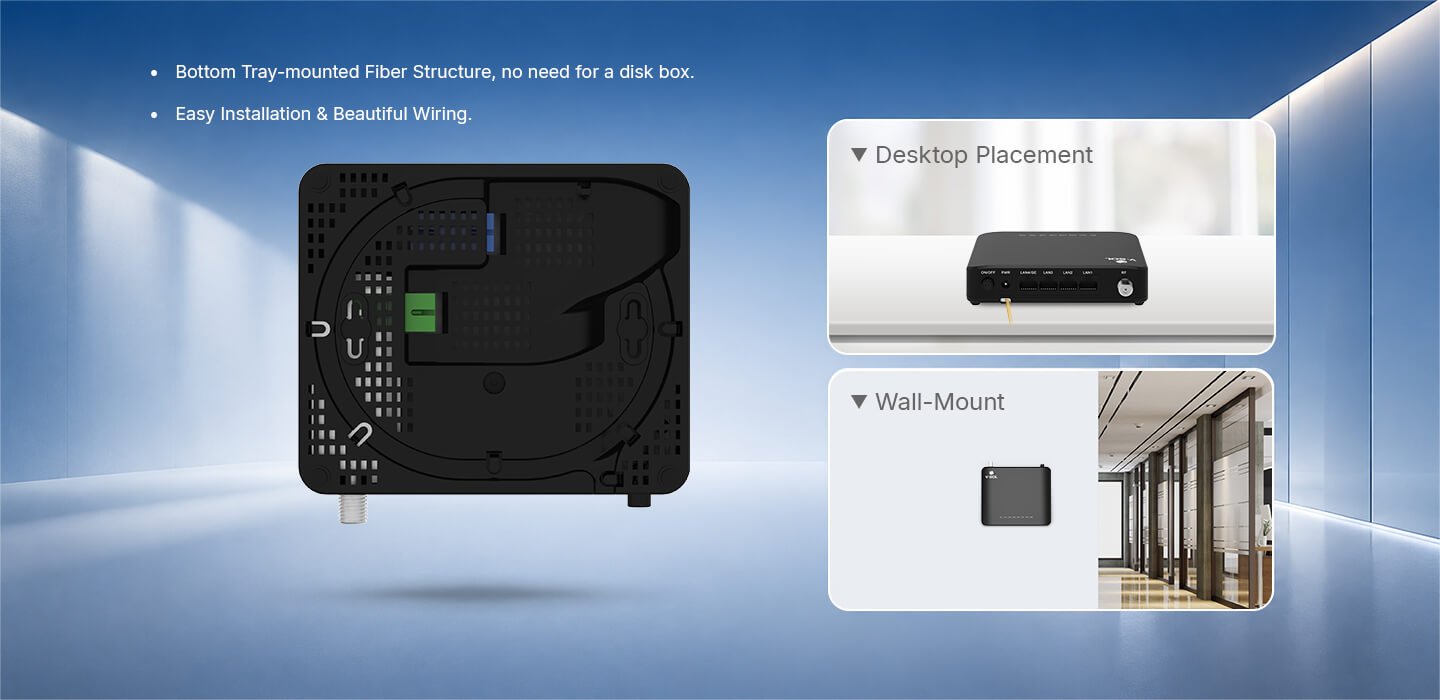

Tray-mounted Fiber Structure

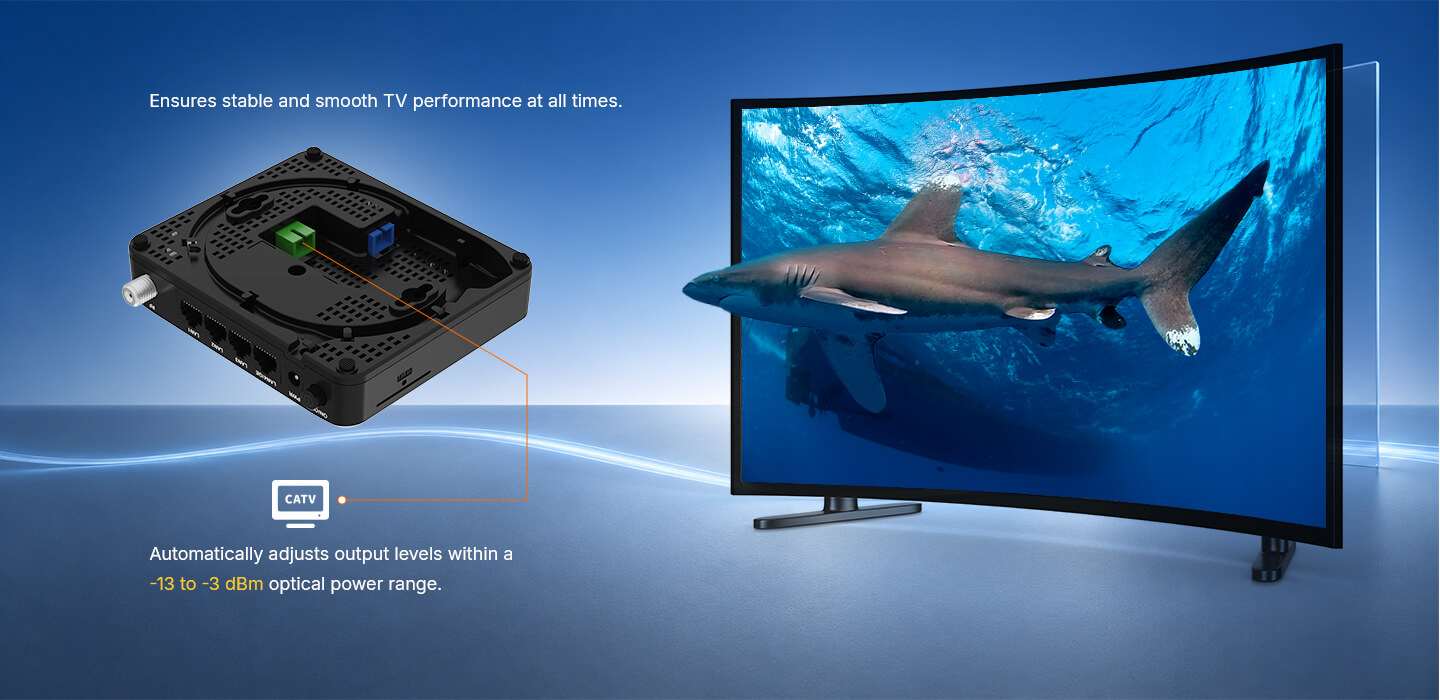

Smart CATV with AGC Control
|
Hardware Parameter |
|
|
Dimension |
130mm*110mm*27.5mm(L*W*H) |
|
Operating condition |
Operating temp: 0 ~ +50°C Operating humidity: 5 ~ 90% (non-condensing) |
|
Storing condition |
Storing temp: -30 ~ +60°C Storing humidity: 5 ~ 90% (non-condensing) |
|
Power adapter |
DC 12V/1A, external AC-DC power adaptor |
|
Power supply |
≤12W |
|
Interfaces |
1GE+3FE+CATV |
|
Indicators |
POWER, PON, LOS, LAN1~LAN4, CATV |
|
Interface Parameter |
|
|
PON interface |
1 XPON port(EPON PX20+ & GPON Class B+) SC single mode, SC/UPC connector TX optical power: 0～+4dBm RX sensitivity: -27dBm Overload optical power: -8dBm Transmission distance: 20KM Wavelength: TX 1310nm, RX1490nm |
|
LAN interface |
1*GE+3*FE, Auto-negotiation RJ45 connectors |
|
CATV Interface |
1*CATV optical interface: SC/APC connector Optical receiving wavelength: 1550±10nm AGC Receiving Power Range: -13～-3dBm Return loss: ＞45dB RF frequency range: 47～1000MHz RF output impedance: 75Ω MER:≥35.8dB (@-12dBm Optical Receiving power) |
|
Product Feature |
|
|
XPON Mode |
Dual mode,Auto-access to EPON/GPON OLT |
|
Abnormal protection |
Detecting Rogue ONU |
|
Firewall |
DDOS, Filtering Based on ACL/MAC |
|
Basic
|
Support MPCP discover®ister Support authentication Mac/Loid/Mac+Loid Support Triple Churning Support DBA bandwidth Support SN/Psw/Loid/Loid+Psw authentication |
|
Alarm |
Support Dying Gasp Support Port Loop Detect Support Eth Port Los |
|
LAN |
Support Port rate limiting Support Loop detection Support Flow control Support Storm control |
|
VLAN
|
Support VLAN tag mode Support VLAN transparent mode Support VLAN 1:1 translation mode(≤8 vlans) |
|
Multicast |
Support MLD Support IGMPv1/v2/Snooping Max Multicast vlan 8 Max Multicast Group 64 |
|
QoS |
Support 4 queues Support SP and WRR Support 802.1P |
|
Management
|
Support CTC OAM 2.0 and 2.1 Support ITUT984.x OMCI Support WEB/TELNET/CLI |
