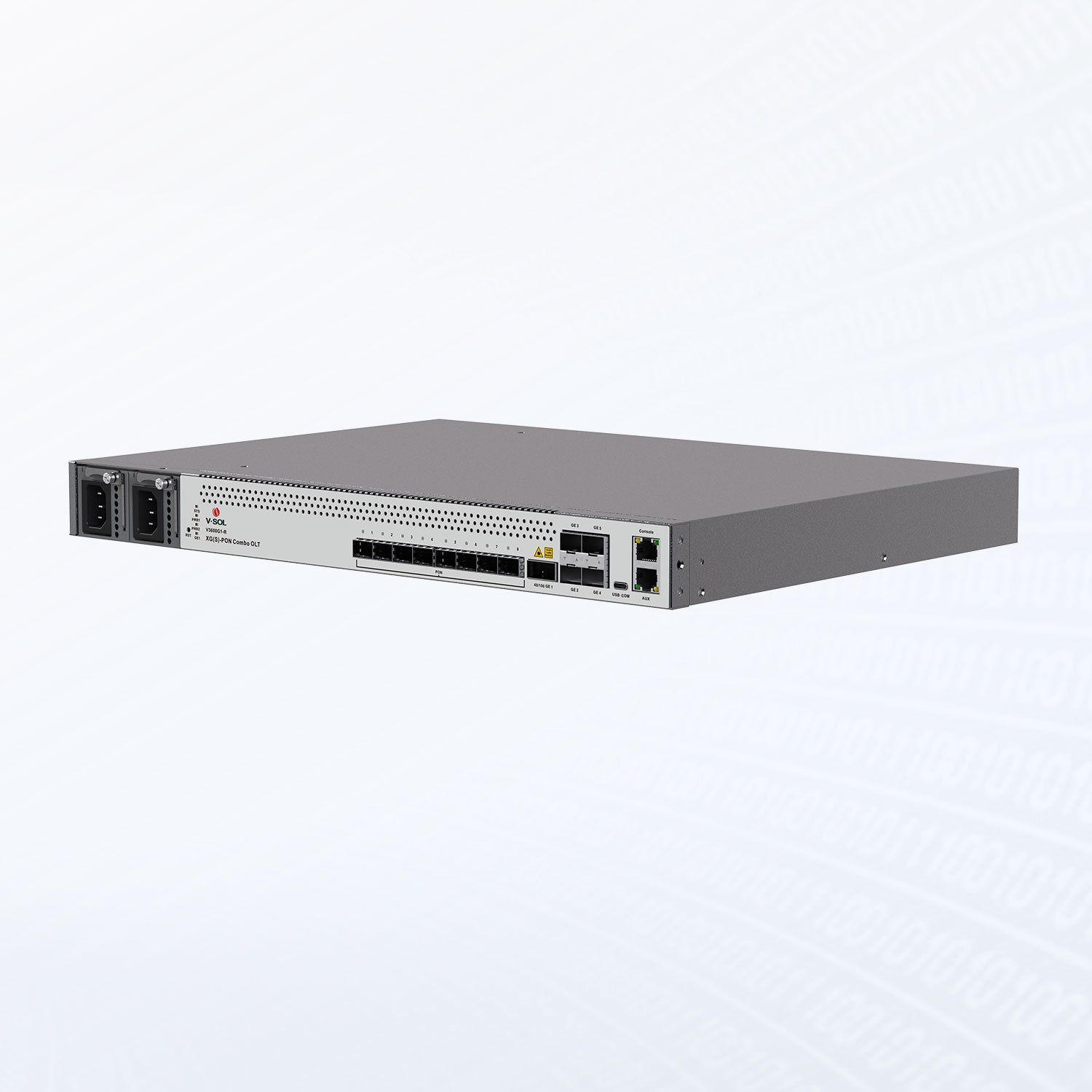

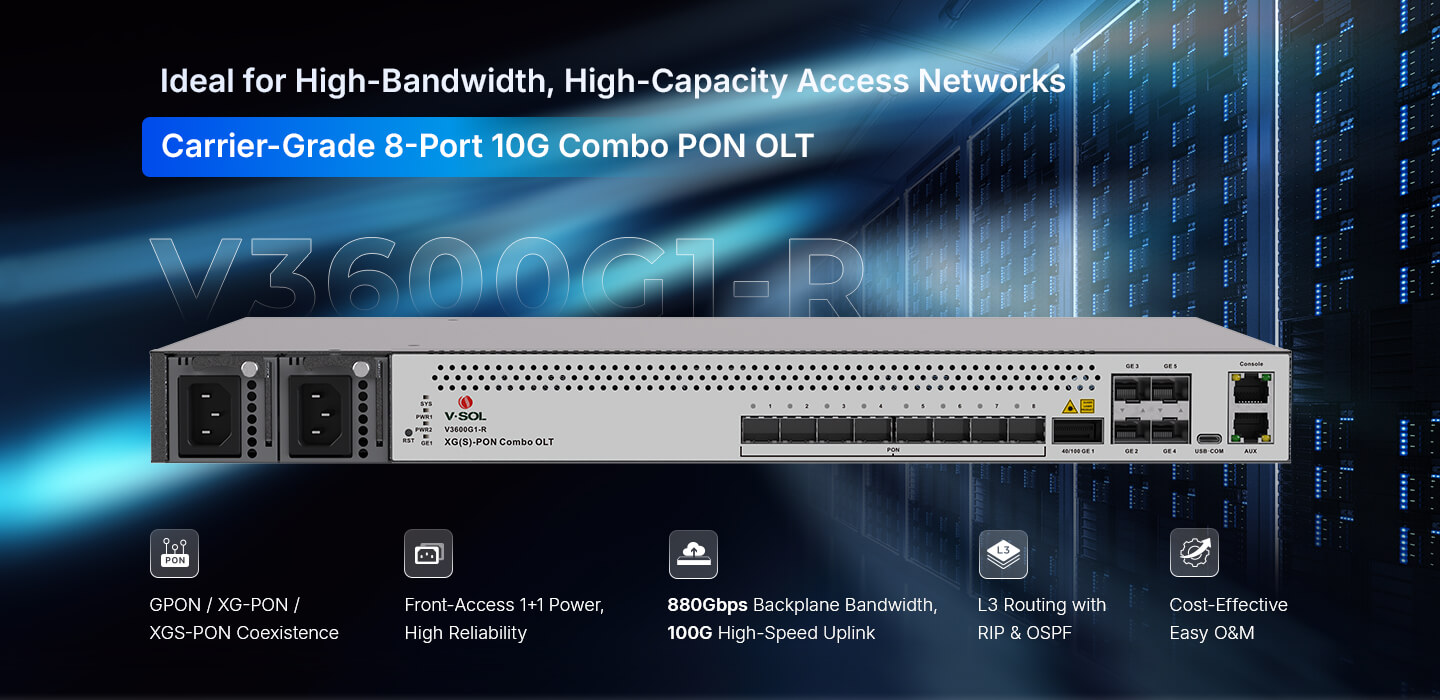

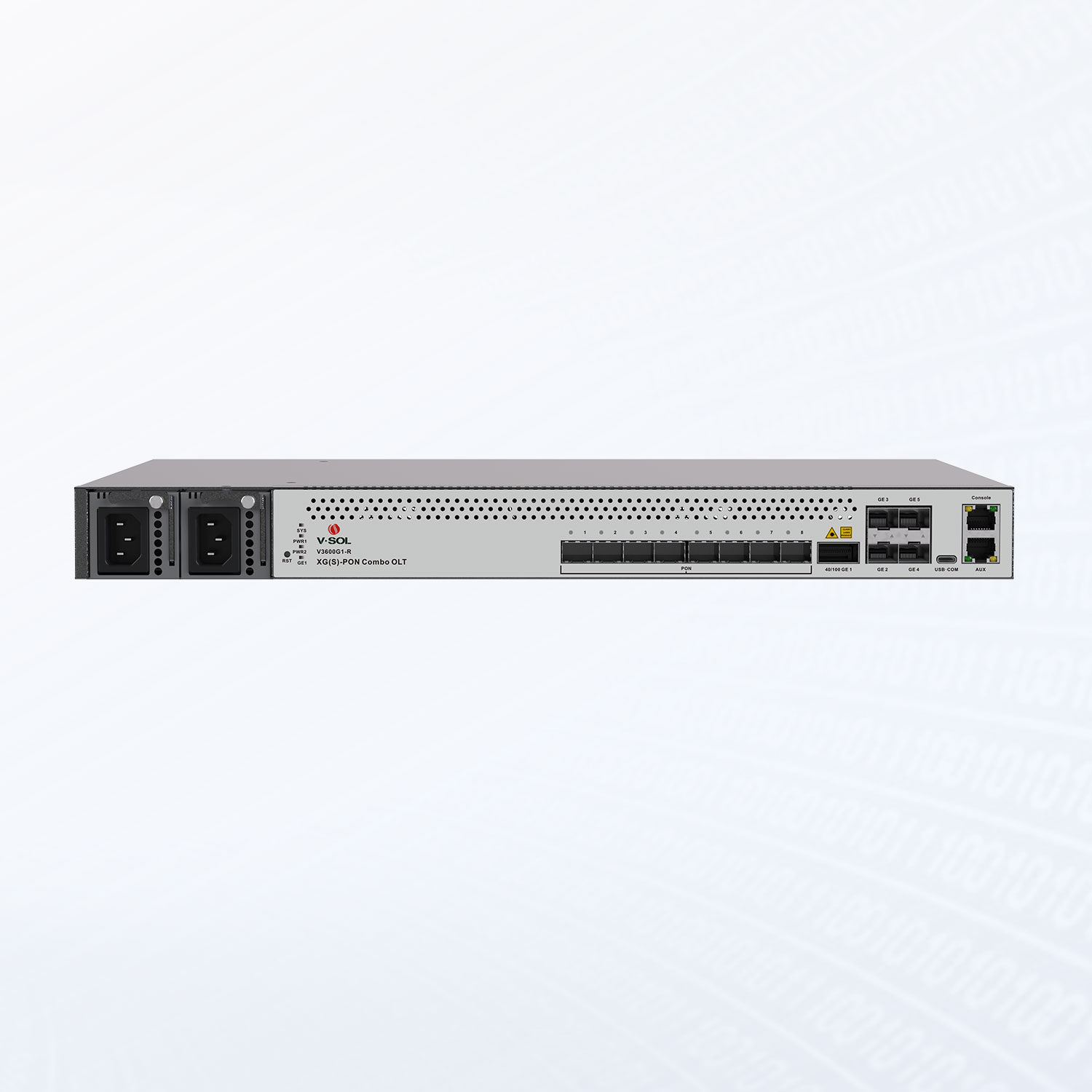

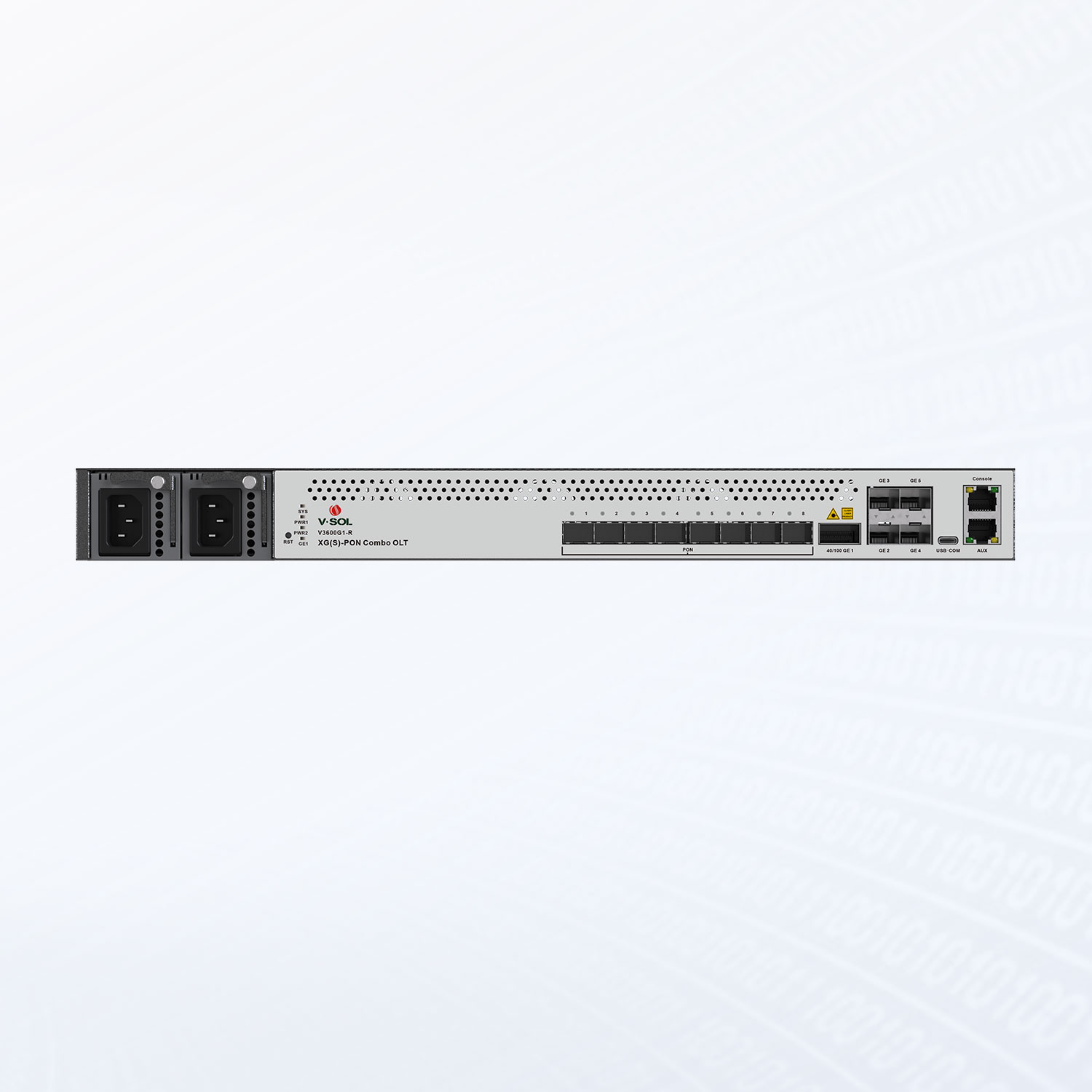

8-Port 10G Combo PON OLT
V3600G1-R | 8×Combo PON, 4×25GE(SFP28) + 1×100GE(QSFP28)

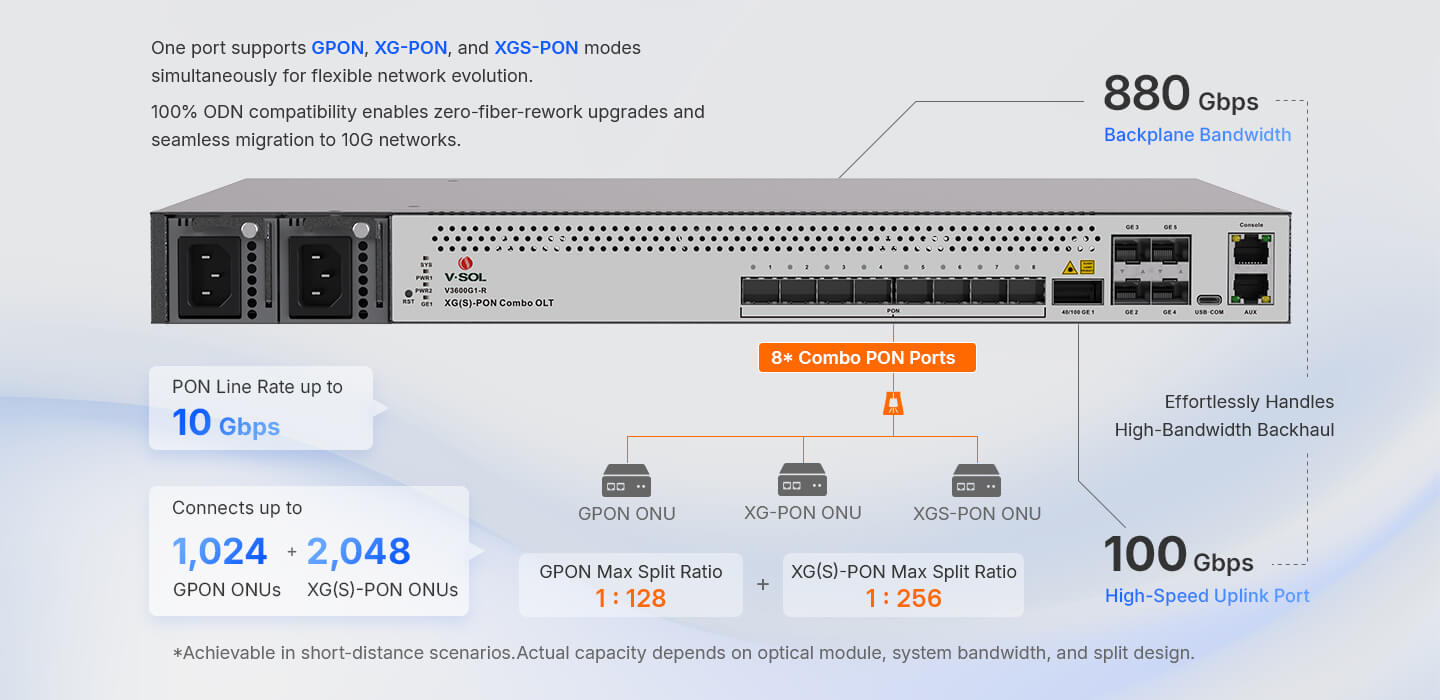

Tri-Mode Coexistence for Seamless 10G Evolution
Massive Access for Effortless Service Delivery

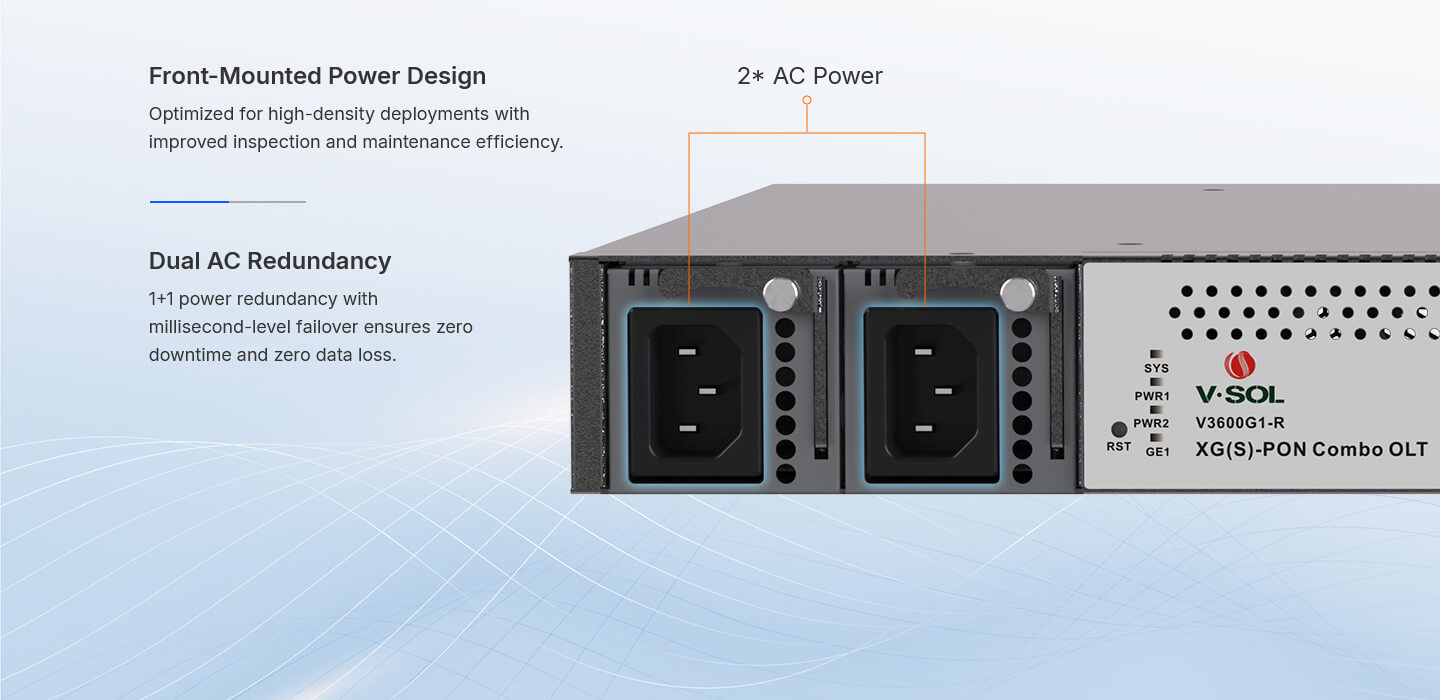

Front-Access Dual Power for Reliable O&M

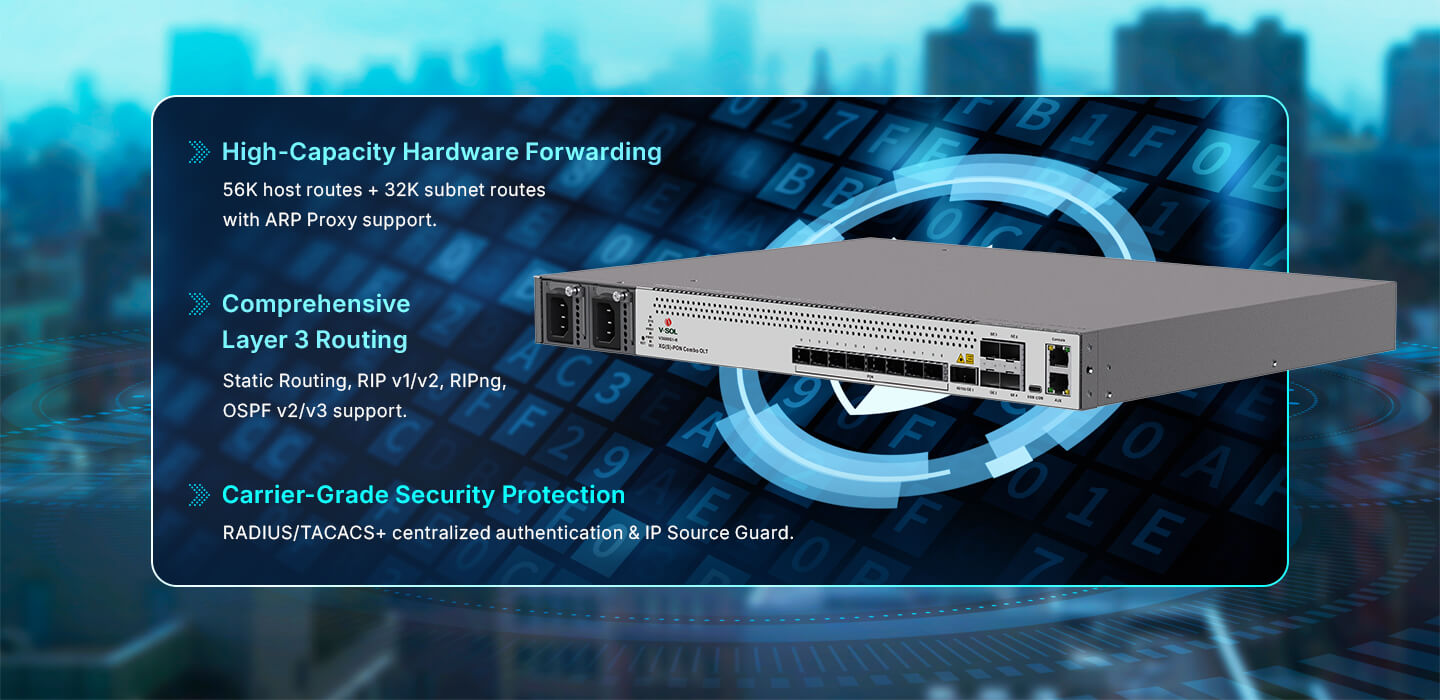

Robust L3 Routing with Carrier-Grade Security

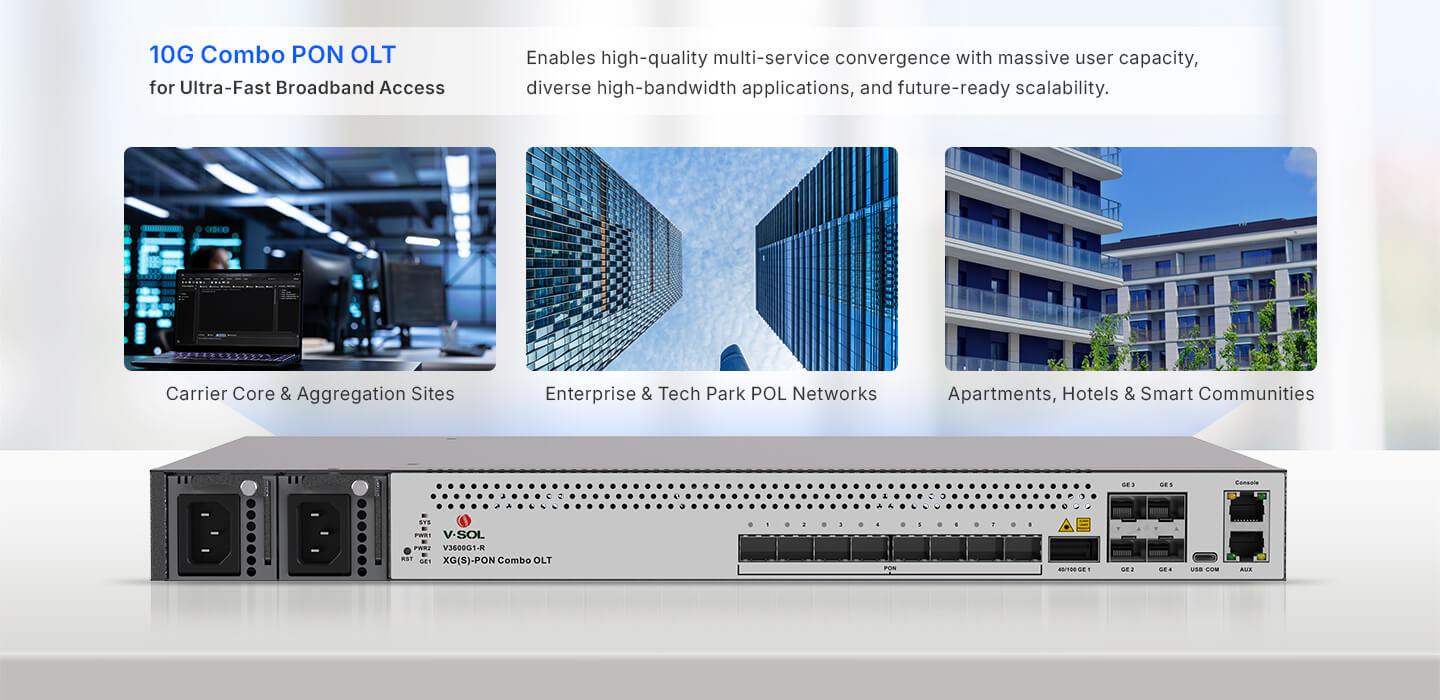

10G Access for Deep Multi-Scenario Integration

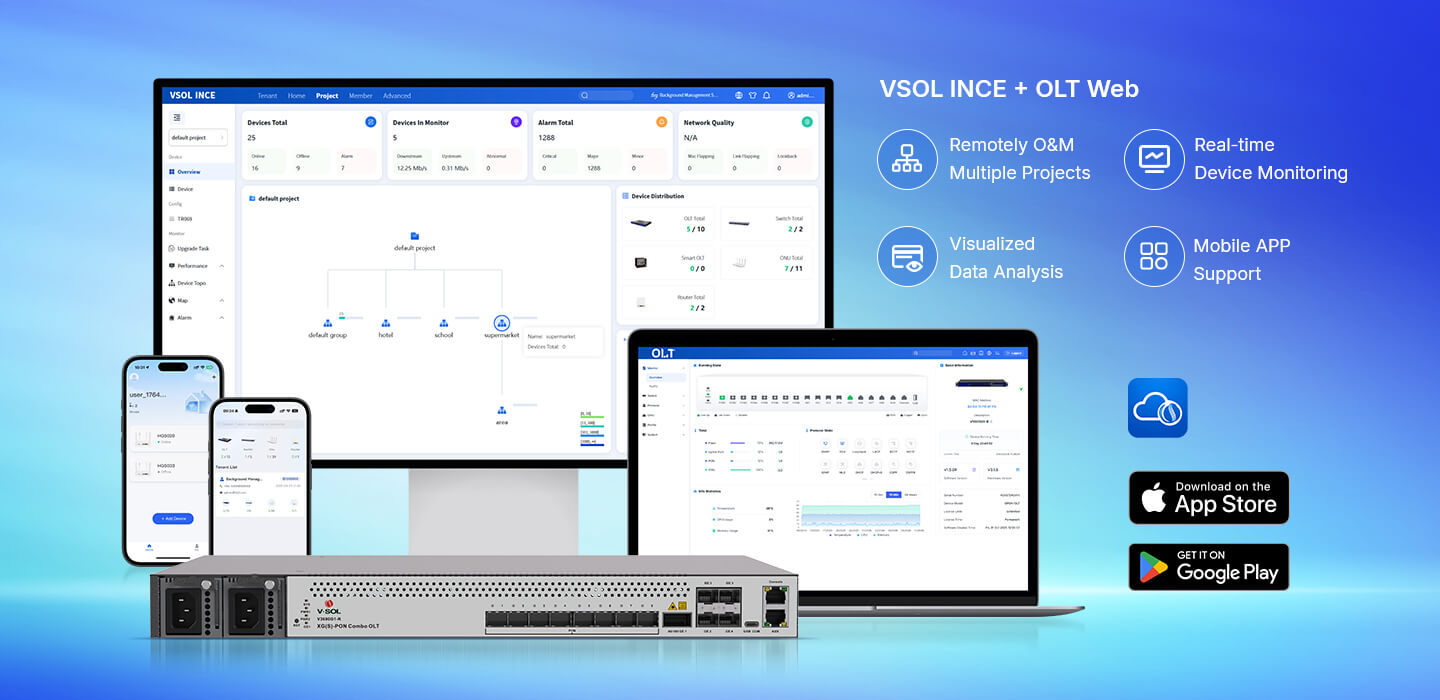

Unified Management for Boosted O&M Efficiency
|
Item |
V3600G1-R |
|
|
Chassis |
Rack |
1U 19Inch Standard Box |
|
Uplink Port |
QTY |
5 |
|
SFP28(25GE) |
4 |
|
|
QSFP28(25GE/50GE/100GE) |
1 |
|
|
XG(S)-PON & GPON Combo Port |
QTY |
8 |
|
Physical Interface |
SFP+ Slots |
|
|
Connector Type |
XG(S)-PON&GPON Combo mode: N2_C+ |
|
|

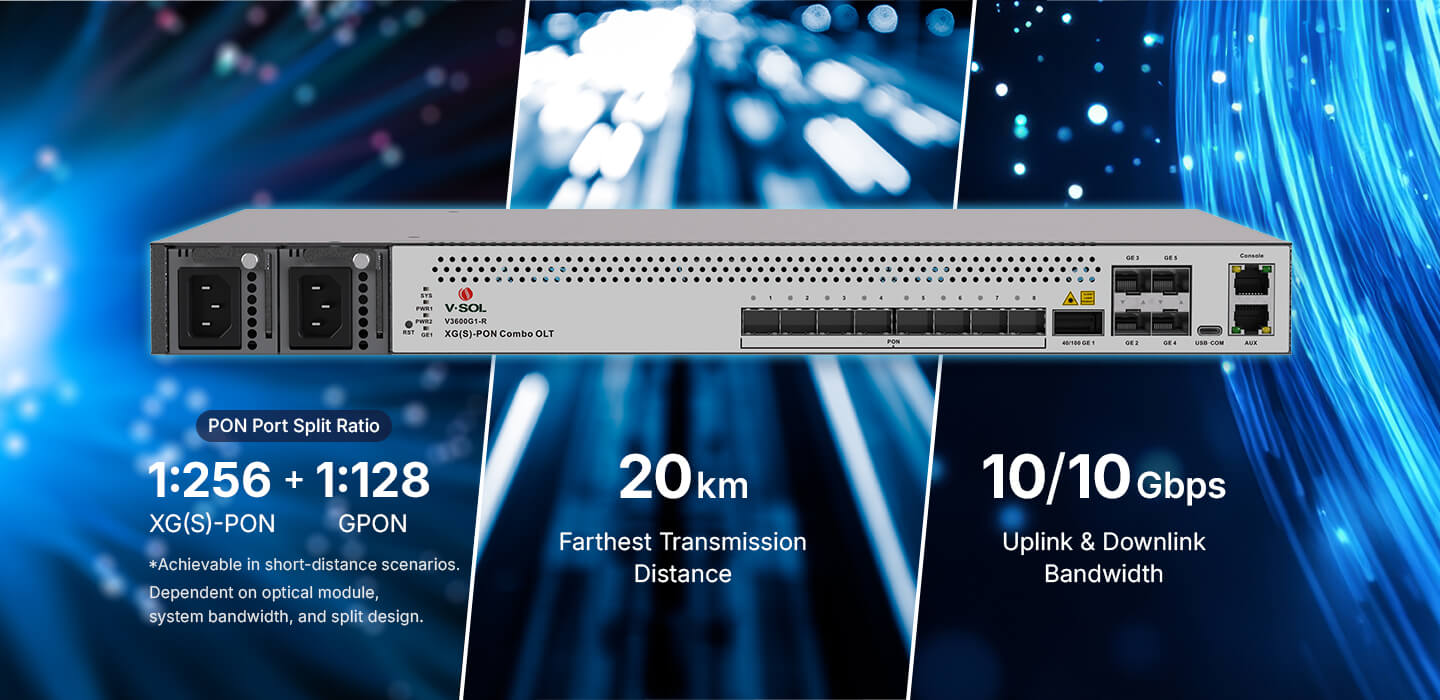

Optical Splitting Ratio |
XG (S) PON 1:256 (maximum), GPON 1:128 (maximum) |
|
|
Management Ports |
1*10/100/1000BASE-T out-band port, 1*CONSOLE port, 1*Type-C USB-COM |
|
|
Backplane Bandwidth (Gbps) |
880 |
|
|
Port Forwarding Rate (Mpps) |
595.2 |
|
|
XG(S)-PON&GPON Combo Port Specification |
Transmission Distance |
20KM |
|
XG(S)-PON Port Speed |
GPON: Upstream1.244Gbps, Downstream 2.488Gbps XG-PON: Upstream 2.488Gbps, Downstream 9.953Gbps XGS-PON: Upstream 9.953Gbps, Downstream 9.953Gbps |
|
|
Wavelength |
GPON: Upstream 1310nm, Downstream 1490nm XG(S)-PON: Upstream: 1270nm Downstream: 1577nm |
|
|
Connector Type |
SC/UPC |
|
|
Fiber optic type |
9/125μm SMF |
|
|
Lightning Protection |
Power Lightning Protection |
6KV |
|
Interface Lightning Protection |
4KV |
|
|
Power Supply |
AC |
Working Voltage Range: 100~240V, Rated Voltage: 110V/220V |
|

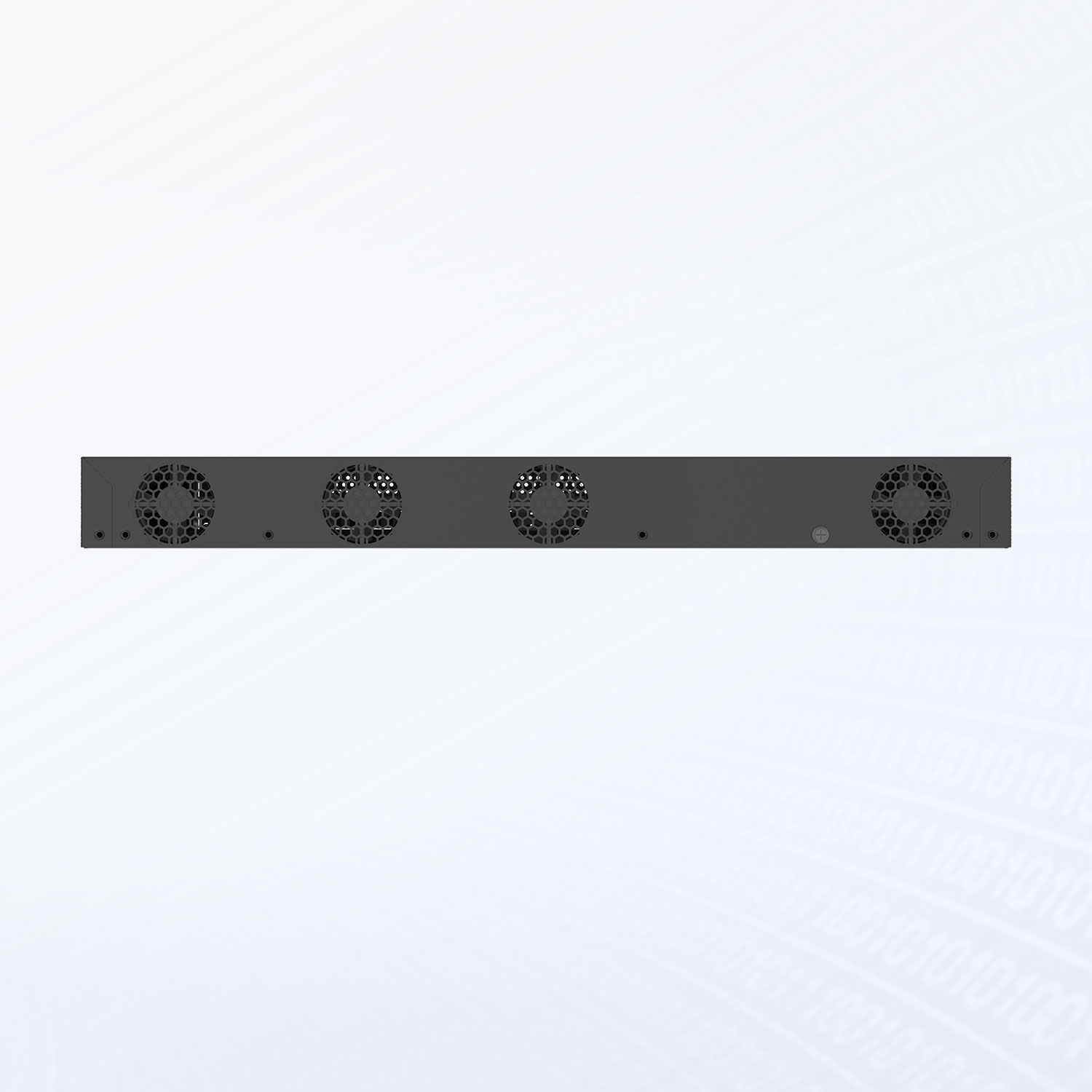

Number of Fans |
5 (on the chassis), 1 (on the PCBA board) |
|
|
Management Mode |
EMS, WEB, SNMP, Telnet, CLI |
|
